Kortel Krisis Karre
Kortel Krisis Karre
CONTACT US FOR SPECIAL PRICES
Share
Kortel Krisis Karre

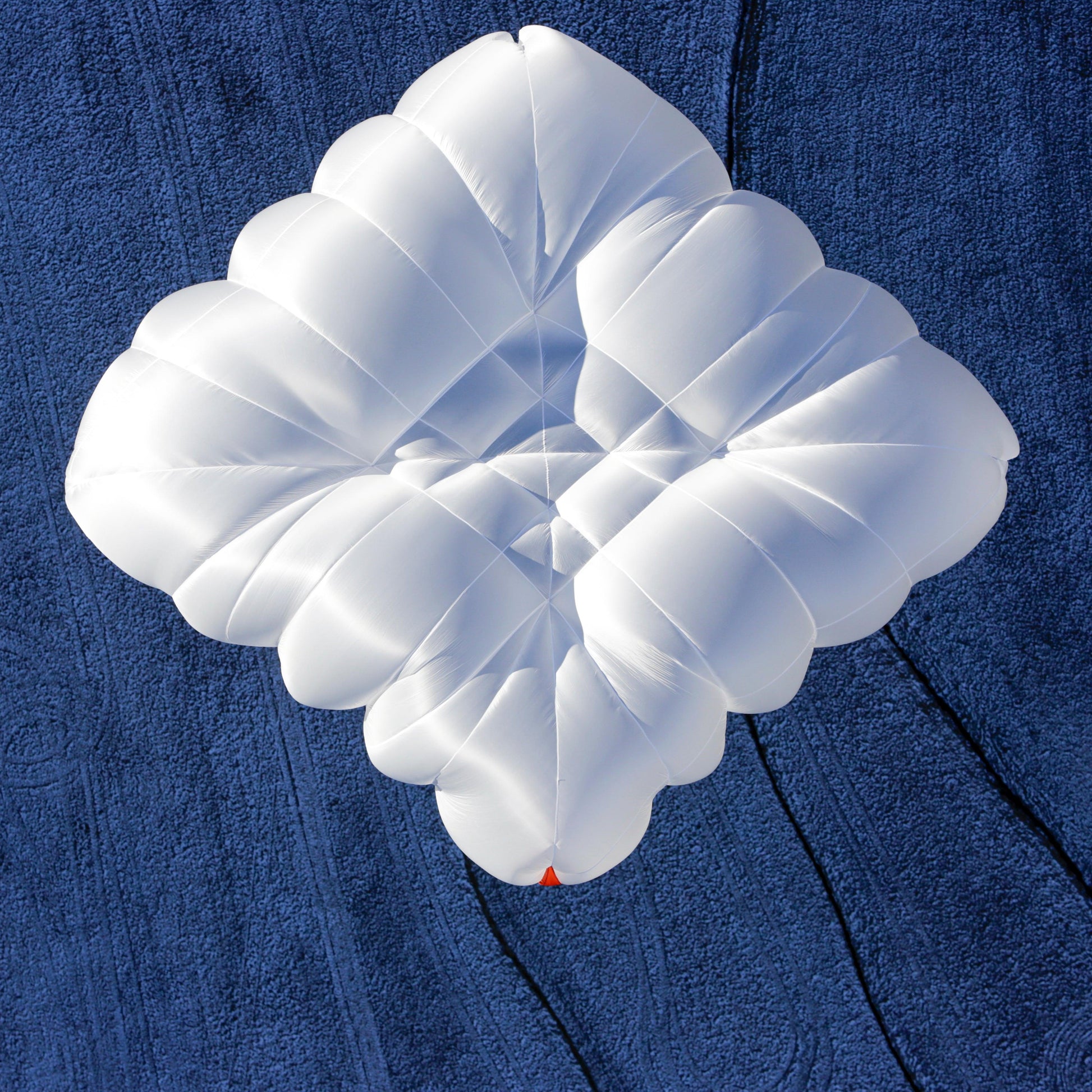

The brand new Kortel Design emergency parachute, the Krisis Karré, has 3 main innovations against the competition:

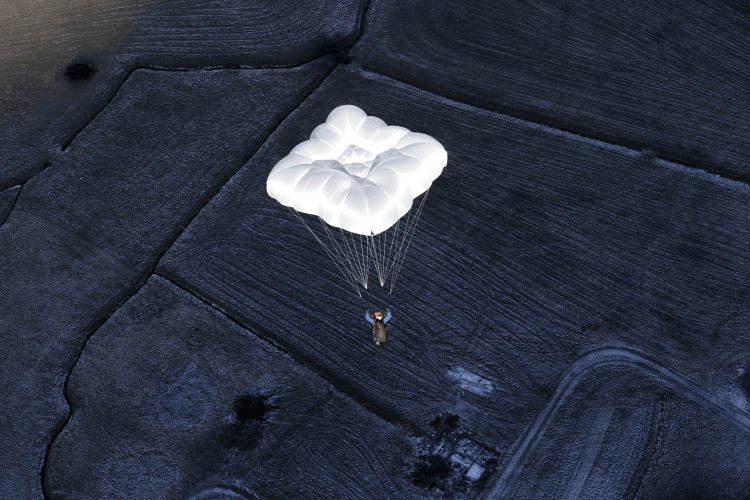

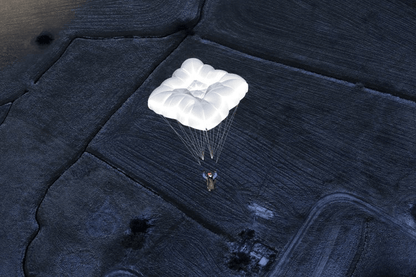

The unique design of the Karré generates a horizontal speed after opening. This makes it possible to create lift, and thus significantly improve the rate of fall.
This horizontal speed also makes it possible to have a fineness of the order of 1.5, which allows the pilot to steer the parachute thanks to the system of handles, and thus avoid potential obstacles during the descent.
The disymmetrical shape induces a folding that improves the opening speed, without complicating the folding.
Link to Manual : https://cloud.airmkg.eu/index.php/s/85Y7sxNbWiqMPy6
Technical Specification
Surface |
Mass (kg) |
Volume (cm3) |
Vertical speed |
Mid-range vertical speed |
Maximum take-off weight |
Homologation |
|
Karre 100 |
25.2 |
1.17 |
3900 |
4.6 m/s |
3.6 m/s ( to 70kg) |
100 kg |
EN 12491 / LTF |
Karre 125 |
30.7 |
1.39 |
4700 |
4.5 m/s |
3.5 m/s (at 85kg) |
125 kg |
|
Karre 160 |
41 |
1.78 |
5300 |
4.8 m/s |
3.5 m/s (at 110kg) |
160 kg |
|
Karre 220 |
59.2 |
2.52 |
7300 |
4.6 m/s |
3.6 m/s (at 160kg) |
220 kg |
